CD Player

CD11MKII

The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players. The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD 11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection, including MP3s.

Buying Options

Rotel warranty applies only to purchases from authorized Rotel retail or online dealers.

ICTexas Instruments premium
PCM5102A 32-bit/384k Hz
Digital to Analog Converter

Tray loading CD mechanismSmooth tray loading
CD mechanism

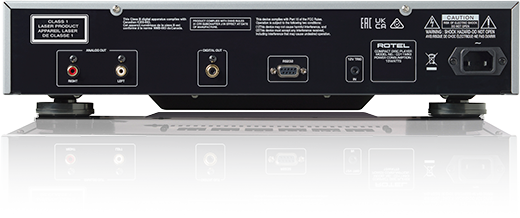

Outputs including
RCA analogue and
Coaxial digital

12 volt trigger12 volt trigger input

Remote ControlIncludes remote control

Engineered with care.


Dimensions (W × H × D)
430 × 98 × 314 mm
17" × 3.8" × 12.4"

Front Panel Height
80 mm (3.15")

Power Requirements
120 V, 60 Hz

Power Consumption
15 W

Standby Power Consumption
<0.5 W

Net Weight
6.2 kg (13.7 lbs.)

BTU Rating
40 BTU/h

Components


Total Harmonic Distortion + Noise
0.009% @ 1k Hz

Frequency Response
20 Hz - 20k Hz, ±0.5 dB

S/N Ratio (IHF "A" Weighted)
>125 dB

Dynamic Range
>99 dB

Digital to Analog Converters
Texas Instruments PCM5102A 32-bit/384k Hz

Channel Balance
±0.5 dB

Channel Separation
>115 dB @ 10k Hz
Product Description

The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players.

The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection, including MP3s.

Digital to Analog conversion is handled by a premium Texas Instruments PCM5102A 32-bit/384kHz DAC feeding custom-tuned digital low pass filter circuits. This sound-first design renders music on a large, open sound stage with both power and finesse.

Intuitive CD control functions on the front panel and included remote control ensure simple operation. The front panel graphic display shows playback status and disc meta data information including the title and artist.

The CD11MKII is available in both black and silver colors.

More Specifications
Intermodulation Distortion
0.009% @ 1k Hz

Phase Linearity
± 0.5 degree

Analog Output impedance
470 Ohms
Digital Output
0.5 V, Peak to Peak

Load Impedance
75 Ohms

Coax Digital Input Signals
SPDIF LPCM (Up to 24-bit/192k Hz)
